#Architecture

#Chapter 1: Introduction

Alauda Build of Rook-Ceph is the cloud-native storage layer for Alauda Container Platform (ACP). It runs as a Kubernetes-native system and provides persistent storage services through operators, custom resources, and CSI drivers.

From an application perspective, the platform provides three primary storage types:

• File storage: Shared file system semantics for workloads that need concurrent read/write access from multiple pods (for example, RWX scenarios).
• Block storage: Low-level block devices for latency-sensitive or database-style workloads that require dedicated volumes.
• Object storage: S3-compatible object access for unstructured data, backup artifacts, and data platform integrations.

Alauda Build of Rook-Ceph integrates the following core open source projects:

• Ceph: Distributed storage engine that provides block, file, and object capabilities.
• Rook: Kubernetes operator framework used to deploy and manage Ceph clusters.
• Ceph CSI Operator: Operator that manages Ceph CSI driver components and their lifecycle.
• Ceph CSI: CSI implementation used by Kubernetes for dynamic provisioning, attach/mount, and lifecycle operations of Ceph-backed volumes.

#Chapter 2: Architecture Overview

At a high level, Alauda Build of Rook-Ceph runs fully inside Alauda Container Platform.

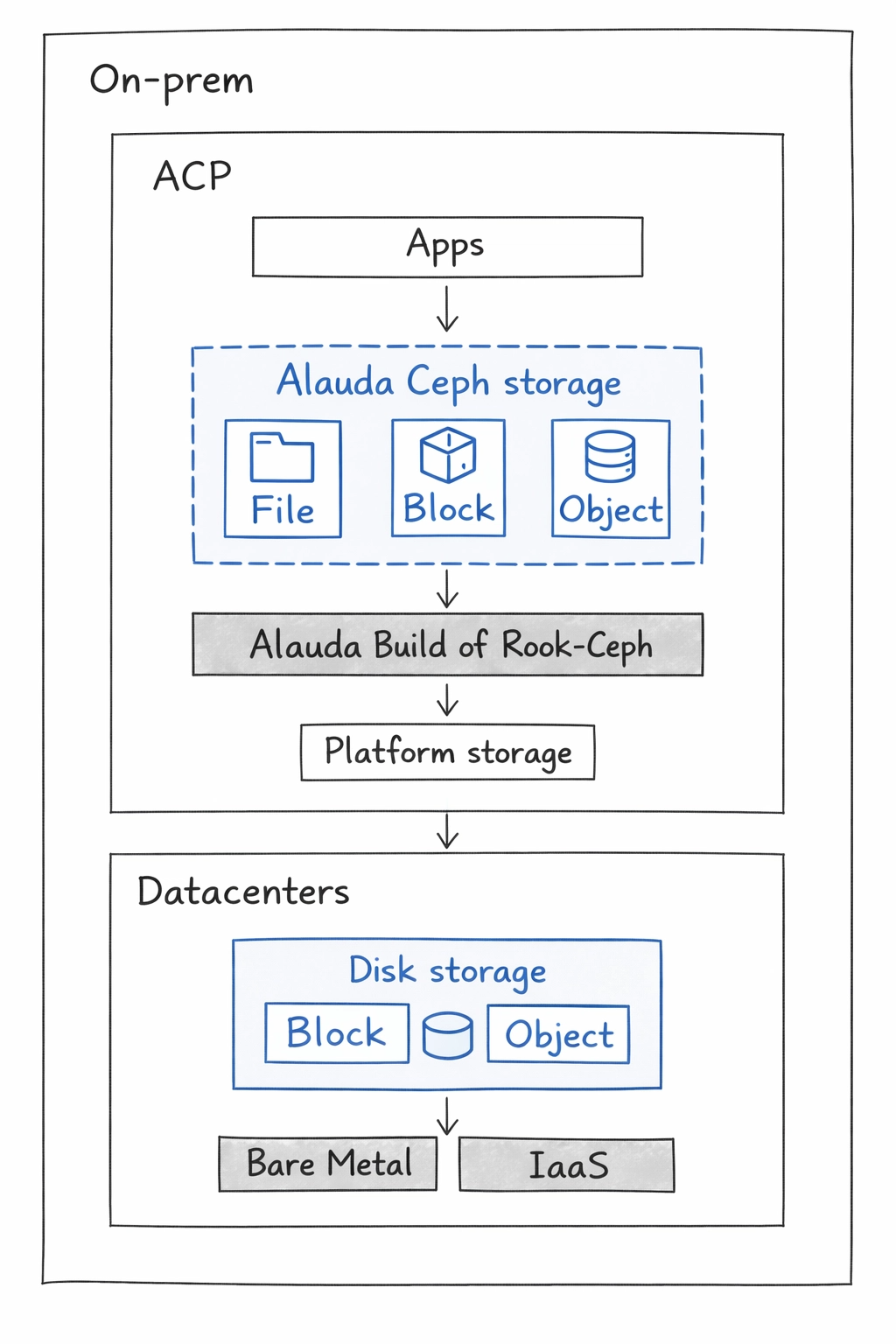

Alauda Build of Rook-Ceph architecture

Alauda Build of Rook-Ceph uses failure domain configuration to determine how data replicas are distributed across the cluster. A failure domain represents a physical boundary, such as a host, rack, or availability zone within which replicas of the data are spread to ensure high availability. Alauda Build of Rook-Ceph automatically identifies these failure domains based on the labels assigned to the storage nodes.

#Chapter 3: Operators

Alauda Build of Rook-Ceph is comprised of the following two Operator Lifecycle Manager (OLM) operator bundles, deploying operators which codify administrative tasks and custom resources so that task and resource characteristics can be easily automated:

• acp-storage-operator
• rook-ceph-operator

Administrators define the desired end state of the cluster, and the operators ensure the cluster is either in that state or approaching that state, with minimal administrator intervention.

#Rook-Ceph operator

rook-ceph-operator is the operator for Ceph in Alauda Build of Rook-Ceph. It enables Ceph storage systems to run on Alauda Container Platform as Kubernetes-managed services.

The rook-ceph-operator container automatically bootstraps storage clusters and monitors storage daemons to maintain cluster health.

#Components

The rook-ceph-operator manages these Ceph daemon components:

• Mons: Ceph monitors (mons) maintain cluster metadata and quorum.
• OSDs: Object Storage Daemons (OSDs) store and replicate data.
• Mgr: The Ceph manager (mgr) provides metrics and internal management capabilities.
• RGW: RADOS Gateway (RGW) provides object storage access through S3-compatible APIs.
• MDS: Metadata Server (MDS) provides metadata services for CephFS shared filesystems.

#Design diagram

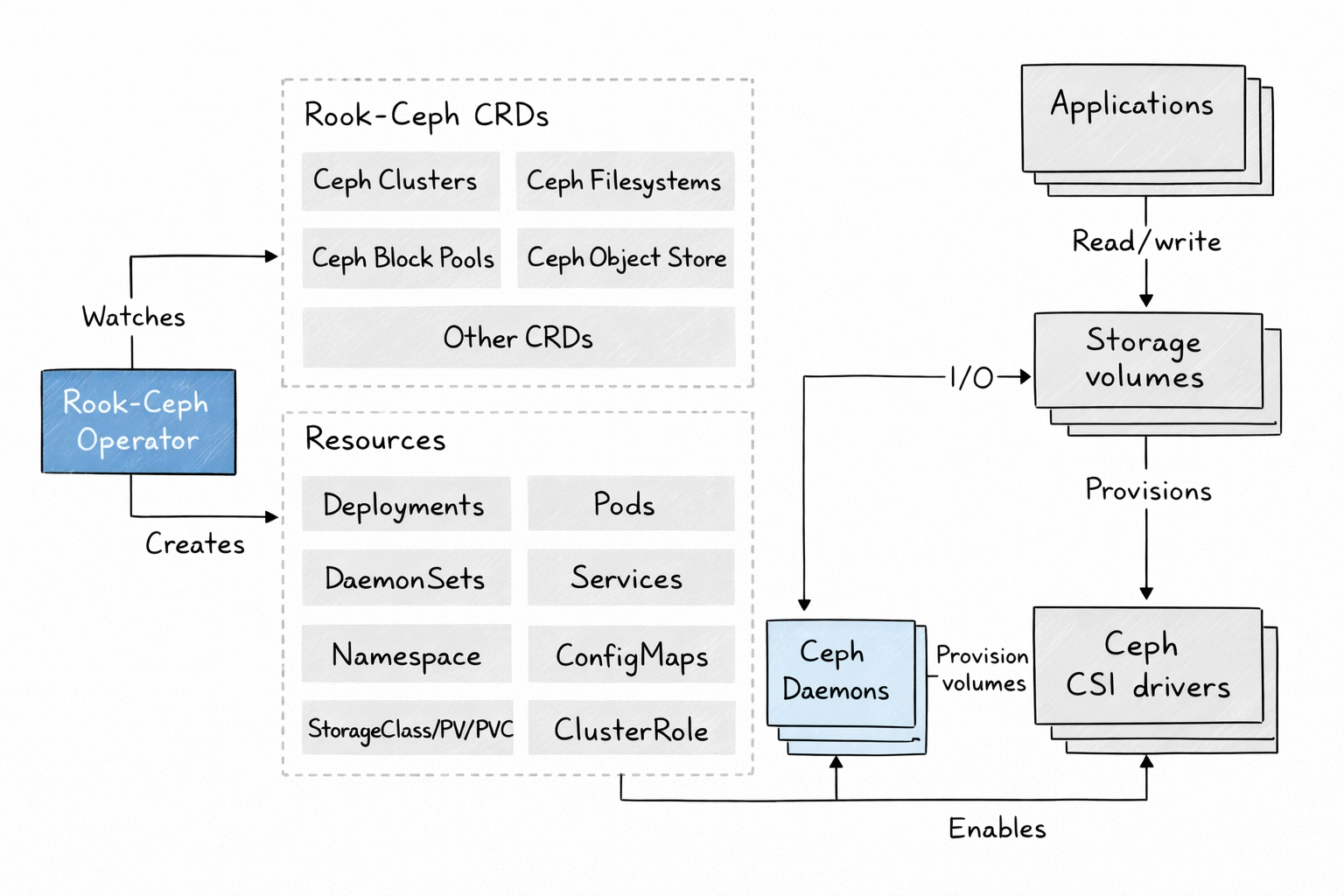

The design diagram shows how rook-ceph-operator integrates Ceph with ACP.

Applications can use this storage layer by mounting block devices and shared filesystems, or by consuming object storage APIs.

#Responsibilities

rook-ceph-operator bootstraps and monitors the storage cluster with these responsibilities:

• Automates configuration of storage components.
• Starts, monitors, and manages Ceph monitor pods and Ceph OSD daemons for the RADOS cluster.
• Initializes pods and artifacts used to manage:
  • Custom resources for pools
  • Object stores (S3)
  • Filesystems
• Monitors Ceph monitors and OSD daemons to keep storage available and healthy.
• Deploys and manages monitor placement and updates monitor configuration as cluster size changes.
• Watches for desired-state changes requested through the API service and applies those changes.
• Initializes the Ceph-CSI drivers.
• Automatically configures Ceph-CSI to mount Ceph storage to application pods.

The rook-ceph-operator image includes the tools required for lifecycle management. It does not modify the data path. It also does not expose all low-level Ceph configurations; advanced Ceph constructs such as placement groups and CRUSH maps remain abstracted for a simpler operational model.

#Resources

The operator adds owner references to the resources it creates in the rook-ceph namespace. During uninstall, these references ensure associated resources are also removed, including ConfigMaps, Secrets, Services, Deployments, and DaemonSets.

The operator watches and reconciles these custom resources:

• CephCluster
• CephObjectStore
• CephFilesystem
• CephBlockPool

#Lifecycle

The operator manages the lifecycle of these Ceph and CSI pods:

• Rook operator:
  • One operator pod.
• RBD CSI Driver:
  • Two provisioner pods managed by one deployment.
  • One plugin pod per node managed by a DaemonSet.
• CephFS CSI Driver:
  • Two provisioner pods managed by one deployment.
  • One plugin pod per node managed by a DaemonSet.
• Monitors (mons):
  • Three monitor pods, each with its own deployment.
  • In stretch clusters, five monitor pods: one in the arbiter zone and two in each data zone.
• Manager (mgr):
  • Two manager pods in standard deployments.
• Object Storage Daemons (OSDs):
  • At least three OSDs are created initially.
  • More OSDs are added as cluster capacity expands.
• Metadata Server (MDS):
  • Two metadata server pods.
• RADOS Gateway (RGW):
  • At least two gateway pods.

#ACP storage operator

acp-storage-operator is an ACP-specific operator that reconciles CephCluster resources and manages built-in ACP storage integrations around operations, monitoring, and troubleshooting.

#Components

acp-storage-operator manages the following built-in integration components:

• Ceph reconciliation controller for CephCluster.
• Two MutatingWebhookConfiguration entries:
  • one for CephCluster
  • one for CephFilesystem

#Design diagram

acp-storage-operator runs as a control-plane operator in ACP and extends the Ceph cluster lifecycle with ACP-native monitoring and operations resources.

#Responsibilities

acp-storage-operator performs the following responsibilities:

• Watches and reconciles CephCluster resources.
• Mutates CephCluster and CephFilesystem objects at creation time through mutating webhooks.
• Initializes ACP-specific defaults during mutation, including resources, placement, and related runtime settings.
• Creates the built-in .mgr pool for ACP-required Ceph manager functionality.
• Creates and maintains ACP built-in AlertRule resources.
• Creates and maintains ACP built-in MonitorDashboard resources.
• Automatically enables and maintains the rook-ceph-tools pod.

#Resources

acp-storage-operator creates and manages these resources for each reconciled CephCluster:

• Built-in Ceph .mgr pool.
• ACP built-in AlertRule objects.
• ACP built-in MonitorDashboard objects.
• rook-ceph-tools pod and its related runtime resources.

#Lifecycle

acp-storage-operator follows this lifecycle in internal mode:

1. Bootstrap phase: The operator deployment starts and registers controllers and mutating admission webhooks for CephCluster and CephFilesystem.
2. Admission phase: On create requests, the webhooks inject ACP defaults (for example resources and placement) before objects are persisted.
3. Reconcile phase: After CephCluster becomes available, the operator continuously reconciles ACP built-in resources, including the .mgr pool, AlertRule, MonitorDashboard, and rook-ceph-tools pod.
4. Cleanup phase: When CephCluster is deleted, the operator removes all ACP-managed resources that it created for that cluster.

#Chapter 4: Installation Overview

This chapter describes installation flow in internal mode and external mode.

#Operator installation

• OLM installs acp-storage-operator for ACP built-in storage integrations.
• OLM installs the rook-ceph-operator from its package and creates the operator deployment.
• The deployment includes the control components required to reconcile CephCluster and Ceph-related resources.
• acp-storage-operator registers mutating admission webhooks for CephCluster and CephFilesystem objects.
• After startup, the operator begins watching CRDs and preparing CSI components required for storage consumption.

#Ceph cluster creation overview

• An administrator creates a CephCluster custom resource.
• The operator uses that declaration to orchestrate Ceph-related resources and CSI services.
• In internal mode, acp-storage-operator also reconciles ACP built-in storage resources around the same CephCluster.
• The concrete reconciliation path differs by deployment mode: internal mode or external mode.

#CephCluster creation

#Internal mode

In internal mode, storage daemons run inside the ACP cluster where the CephCluster is created.

1. The operator receives the CephCluster in the storage namespace.
2. acp-storage-operator mutating webhooks initialize ACP defaults (for example resources and placement) for CephCluster and CephFilesystem resources.
3. rook-ceph-operator bootstraps monitor quorum and creates manager daemons.
4. OSD prepare jobs discover configured devices and then create OSD deployments.
5. Ceph CSI provisioner and node plugin pods are deployed for RBD and CephFS.
6. acp-storage-operator reconciles ACP built-in resources, including the .mgr pool, built-in AlertRule, built-in MonitorDashboard, and rook-ceph-tools pod.
7. StorageClass objects become available for dynamic provisioning through PVC workflows.
8. Cluster health and readiness are continuously reported through CephCluster status.

#External mode

In external mode, the Ceph data plane runs in an external provider cluster, while ACP hosts the consumer-side control integration.

1. The operator installs and reconciles CSI components in the consumer ACP cluster.
2. External Ceph connection data (such as monitor endpoints, cluster identifiers, and client secrets) is imported.
3. A CephCluster is reconciled in external mode (external: true) to represent the remote Ceph backend.
4. No local monitor or OSD daemons are created in the consumer cluster.
5. RBD and CephFS CSI drivers use the imported connection information to provision and mount volumes from the external Ceph cluster.
6. Status and health are reconciled from consumer-side components and external connectivity checks.

#Chapter 5: Upgrade Overview

Alauda Build of Rook-Ceph follows OLM-managed upgrade workflows through Subscription, InstallPlan, and ClusterServiceVersion (CSV) resources.

A newer bundle appears in the current channel, OLM creates an InstallPlan, and execution depends on automatic or manual approval policy.

After InstallPlan approval, OLM executes CSV reconciliation:

• New CSV is installed.
• Operator Deployments are updated to the new images and restart.
• Old CSV is replaced after successful transition checks.

Then operator-level reconciliation finalizes the upgrade:

• Operators validate and re-apply desired state from user-facing CRs.
• Ceph and CSI resources are checked for version-aligned configuration.
• Drift is corrected until cluster status reports healthy and converged.
